类别：电磁阀
品牌：FUJI-E(富士工程)
FUJI-E(富士工程)
LVSH-203G-A2D-TB-W
型号:LVSH-203G-A2D-TB-W
型号:LVSH-203G-A2D-TB-W
产品详情
富士FUJI阀门LVSH-2系列截止阀（零泄漏）
特点：
采用球状提升阀设计，实现超群的闭止功能
流体方向没有限制
超高压应对，最高70MPA（约700kgf/cm2)（HLS-系列）
阀门的响应速度迅捷（例:LVSH-20**-A*-TB）
非常合适能固定气缸位置，保持位置，非正常停止（紧急遮断），压拔等。
货期短，日本产。全数检查（内外部泄漏检查，启动检查等非常缜密）
工作原理：
A通道流向B通道的流量，经过截止流量螺钉时，如果流量比预先设定的流量大，图1，构造略图所示的（イ）处就会产生流量抵抗，通过节流孔（ロ）处的压力会与（イ）处产生同等的压力。而且压力都比（ハ）处高，这样，线管就会同（ロ）处发条抵触而向左移动，从而实现A通道与B通道的截流，阻止了A通道进入的液体油。
|

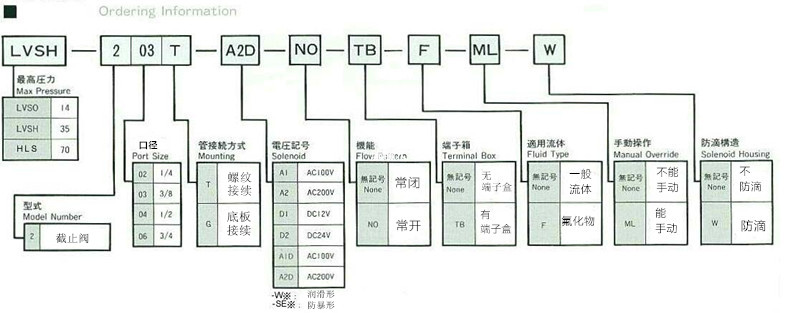

型号 |
口径 | 最高使用压力 | 最大流量 |
| LVSO-202T-* LVSO-202G-* |
02 (1/4 inch) | 14 MPa (约140kgf/cm2） | 15 L/分 |
| LVSH-202T-W* LVSH-202G-W* LVSH-202T-* LVSH-202G-* |
02 (1/4) | 35 MPa (约350kgf/cm2) | 20 |
| LVSH-203T-* LVSH-203G-* |
03 (3/8) | 35 MPa | 50 |
| LVSH-204T-* LVSH-204G-* |
04 (1/2) | 35 MPa | 70 |
| LVSH-206G- | 06 (3/4) | 35 MPa | 110 (可选180L/min) |
| HLS-202T-* HLS-202G-* |
02 (1/4) | 70 MPa | 15 |
| HLS-203T-* HLS-203G-* |
03 (3/8) | 70 MPa | 30 |
| HLS-204T-* HLS-204G-* |
04 (1/2) | 70 MPa | 50 |
| LVSH-203G-A1D-F-ML-W | LVSH-204T-A2TB | LVSH-203T-D1-ML |
| LVSH-203G-A1D-F-W | LVSH-204T-A2-TB | LVSH-203T-D1-ML-W |
| LVSH-203G-A1D-ML | LVSH-204T-A2-TB-F | LVSH-203T-D1NO |
| LVSH-203G-A1D-ML-W | LVSH-204T-A2-TB-F-ML | LVSH-203T-D1-NO |
| LVSH-203G-A1DNO | LVSH-204T-A2-TB-F-ML-W | LVSH-203T-D1-NO-F |
| LVSH-203G-A1D-NO | LVSH-204T-A2-TB-F-W | LVSH-203T-D1-NO-F-ML |
| LVSH-203G-A1D-NO-F | LVSH-204T-A2-TB-ML | LVSH-203T-D1-NO-F-ML-W |
| LVSH-203G-A1D-NO-F-ML | LVSH-204T-A2-TB-ML-W | LVSH-203T-D1-NO-F-W |
| LVSH-203G-A1D-NO-F-ML-W | LVSH-204T-A2-TB-W | LVSH-203T-D1-NO-ML |
| LVSH-203G-A1D-NO-F-W | LVSH-204T-A2-W | LVSH-203T-D1-NO-ML-W |
| LVSH-203G-A1D-NO-ML | LVSH-204T-D1 | LVSH-203T-D1-NO-TB |
| LVSH-203G-A1D-NO-ML-W | LVSH-204T-D1-F | LVSH-203T-D1-NO-TB-F |
| LVSH-203G-A1D-NO-TB | LVSH-204T-D1-F-ML | LVSH-203T-D1-NO-TB-F-ML |
| LVSH-203G-A1D-NO-TB-F | LVSH-204T-D1-F-ML-W | LVSH-203T-D1-NO-TB-F-ML-W |
| LVSH-203G-A1D-NO-TB-F-ML | LVSH-204T-D1-F-W | LVSH-203T-D1-NO-TB-F-W |
| LVSH-203G-A1D-NO-TB-F-ML- | LVSH-204T-D1-ML | LVSH-203T-D1-NO-TB-ML |
| LVSH-203G-A1D-NO-TB-F-W | LVSH-204T-D1-ML-W | LVSH-203T-D1-NO-TB-ML-W |
| LVSH-203G-A1D-NO-TB-ML | LVSH-204T-D1NO | LVSH-203T-D1-NO-TB-W |
| LVSH-203G-A1D-NO-TB-ML-W | LVSH-204T-D1-NO | LVSH-203T-D1-NO-W |
| LVSH-203G-A1D-NO-TB-W | LVSH-204T-D1-NO-F | LVSH-203T-D1TB |
| LVSH-203G-A1D-NO-W | LVSH-204T-D1-NO-F-ML | LVSH-203T-D1-TB |
| LVSH-203G-A1DTB | LVSH-204T-D1-NO-F-ML-W | LVSH-203T-D1-TB-F |
| LVSH-203G-A1D-TB | LVSH-204T-D1-NO-F-W | LVSH-203T-D1-TB-F-ML |
| LVSH-203G-A1D-TB-F | LVSH-204T-D1-NO-ML | LVSH-203T-D1-TB-F-ML-W |
| LVSH-203G-A1D-TB-F-ML | LVSH-204T-D1-NO-ML-W | LVSH-203T-D1-TB-F-W |
| LVSH-203G-A1D-TB-F-ML-W | LVSH-204T-D1-NO-TB | LVSH-203T-D1-TB-ML |
| LVSH-203G-A1D-TB-F-W | LVSH-204T-D1-NO-TB-F | LVSH-203T-D1-TB-ML-W |
| LVSH-203G-A1D-TB-ML | LVSH-204T-D1-NO-TB-F-ML | LVSH-203T-D1-TB-W |
| LVSH-203G-A1D-TB-ML-W | LVSH-204T-D1-NO-TB-F-ML-W | LVSH-203T-D1-W |
| LVSH-203G-A1D-TB-W | LVSH-204T-D1-NO-TB-F-W | LVSH-203T-D2 |
| LVSH-203G-A1D-W | LVSH-204T-D1-NO-TB-ML | LVSH-203T-D2-F |
| LVSH-203G-A1-F | LVSH-204T-D1-NO-TB-ML-W | LVSH-203T-D2-F-ML |
| LVSH-203G-A1-F-ML | LVSH-204T-D1-NO-TB-W | LVSH-203T-D2-F-ML-W |
| LVSH-203G-A1-F-ML-W | LVSH-204T-D1-NO-W | LVSH-203T-D2-F-W |
| LVSH-203G-A1-F-W | LVSH-204T-D1TB | LVSH-203T-D2-ML |
| LVSH-203G-A1-ML | LVSH-204T-D1-TB | LVSH-203T-D2-ML-W |
| LVSH-203G-A1-ML-W | LVSH-204T-D1-TB-F | LVSH-203T-D2NO |
| LVSH-203G-A1NO | LVSH-204T-D1-TB-F-ML | LVSH-203T-D2-NO |
| LVSH-203G-A1-NO | LVSH-204T-D1-TB-F-ML-W | LVSH-203T-D2-NO-F |
| LVSH-203G-A1-NO-F | LVSH-204T-D1-TB-F-W | LVSH-203T-D2-NO-F-ML |
| LVSH-203G-A1-NO-F-ML | LVSH-204T-D1-TB-ML | LVSH-203T-D2-NO-F-ML-W |
工作原理：
A通道流向B通道的流量，经过截止流量螺钉时，如果流量比预先设定的流量大，图1，构造略图
所示的（イ）处就会产生流量抵抗，通过节流孔（ロ）处的压力会与（イ）处产生同等的压力。
而且压力都比（ハ）处高，这样，线管就会同（ロ）处发条抵触而向左移动，从而实现A通道与B
通道的截流，阻止了A通道进入的液体油。
使用说明
1、制动油不能参入异物，需要ISO VG32或者是46相当的石油类制动油，粘度范围20~400[cSt]。
2、制动油的温度在0~60°之间的范围，如果超出温度范围的话，需要另行商量。
3、磷酸盐酯类的制动油，以及轻油的情况下，需要选择带-F的类型，代表氟化O型圈，水乙二醇
液的情况下，推荐使用。
4、请注意电磁线圈的电压、电流和频率
5、阀门安装方式没有限制，但是建议水平安装。
