类别:固定电容器
品牌:MEIDENSHA(明电舍)
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |
CKT-25-0035 | 25 | 25 | 35 | 25 | 67 | 6.42 | 2.32 | 163 | 58.9 | N/A | 1.54 |

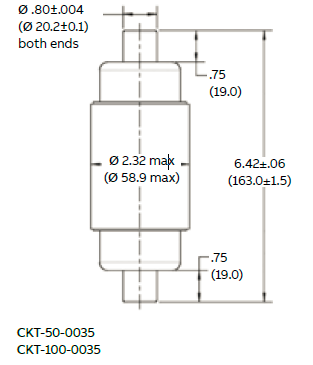

CKT-50-0035 | 50 | 50 | 35 | 25 | 77 | 6.42 | 2.32 | 163 | 58.9 | N/A | 1.54 |
CKT-100-0035 | 100 | 100 | 35 | 25 | 87 | 6.42 | 2.32 | 163 | 58.9 | N/A | 1.54 |
CKT-150-0030 | 150 | 150 | 30 | 20 | 90 | 6.46 | 2.66 | 164 | 67.5 | N/A | 1.98 |

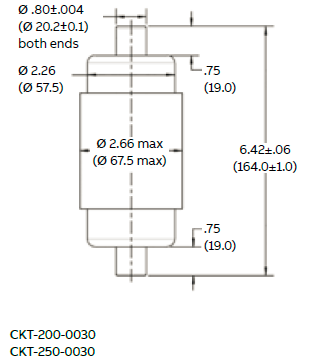

CKT-200-0030 | 200 | 200 | 30 | 20 | 95 | 6.46 | 2.66 | 164 | 67.5 | N/A | 1.98 |
CKT-250-0030 | 250 | 250 | 30 | 20 | 100 | 6.46 | 2.66 | 164 | 67.5 | N/A | 1.98 |
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |

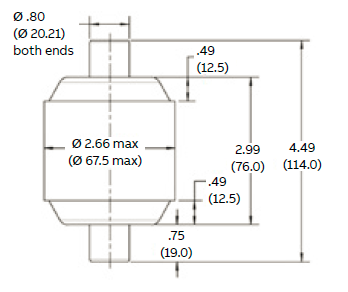

CKT1-25-0025 | 25 | 25 | 25 | 15 | 58 | 4.5 | 2.68 | 114 | 67.5 | N/A | 1.32 |
CKT1-50-0025 | 50 | 50 | 25 | 15 | 68 | 4.5 | 2.66 | 114 | 67.5 | N/A | 1.32 |
CKT1-100-0025 | 100 | 100 | 25 | 15 | 80 | 4.5 | 2.66 | 114 | 67.5 | N/A | 1.32 |
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |

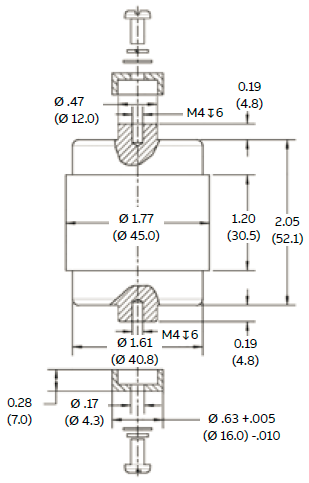

CF2-50-0015 | 50 | 50 | 15 | 9 | 27 | 2.44 | 1.77 | 62 | 45 | N/A | 0.66 |
CF2-80-0015 | 80 | 80 | 15 | 9 | 76 | 2.44 | 1.77 | 62 | 45 | N/A | 0.66 |
CF2-100-0015 | 100 | 100 | 15 | 9 | 80 | 2.44 | 1.77 | 62 | 45 | N/A | 0.66 |
CF2-150-0015 | 150 | 150 | 15 | 9 | 75 | 2.44 | 1.77 | 62 | 45 | N/A | 0.66 |
CF2-180-0015 | 180 | 180 | 15 | 9 | 90 | 2.44 | 1.77 | 62 | 45 | N/A | 0.66 |
CF2-210-0015 | 210 | 210 | 15 | 9 | 76 | 2.44 | 1.77 | 62 | 45 | N/A | 0.66 |
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |

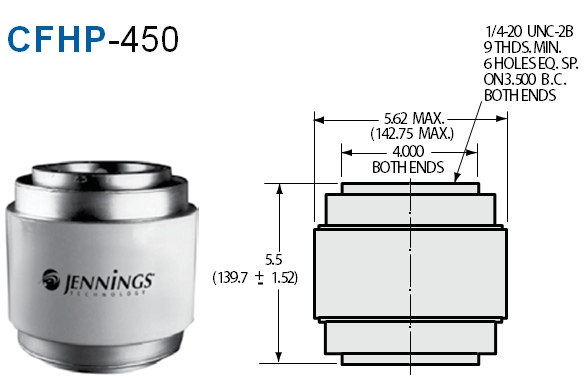

CFHP-450-45S | 450 | 450 | 45 | 27 | 260 | 5.51 | 5.73 | 140 | 145.5 | N/A | 11 |
CFHP-450-50S | 450 | 450 | 50 | 30 | 280 | 5.51 | 5.73 | 140 | 145.5 | N/A | 11 |
CFHP-450-55S | 450 | 450 | 55 | 33 | 300 | 5.51 | 5.73 | 140 | 145.5 | N/A | 11 |

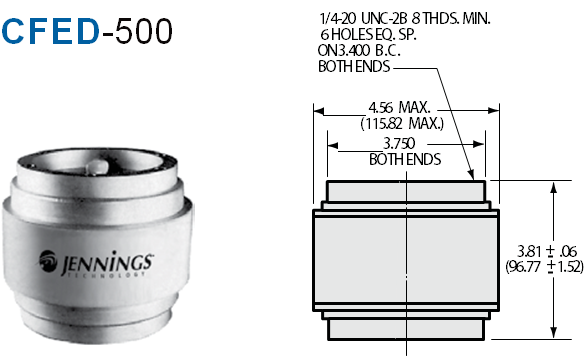

CFED-500-20S | 500 | 500 | 20 | 12 | 150 | 3.82 | 4.76 | 97 | 121 | N/A | 4 |
CFED-500-25S | 500 | 500 | 25 | 15 | 160 | 3.82 | 4.76 | 97 | 121 | N/A | 4 |
CFED-500-30S | 500 | 500 | 30 | 18 | 160 | 3.82 | 4.76 | 97 | 121 | N/A | 4 |
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |
CFHP-750-0040 | 750 | 750 | 40 | 24 | 340 | 6.22 | 7.2 | 158 | 183 | N/A | 13 |
CFHP-750-0045 | 750 | 750 | 45 | 24 | 340 | 6.22 | 7.2 | 158 | 183 | N/A | 13 |
CFHP-750-0050 | 750 | 75 | 50 | 30 | 340 | 6.22 | 7.2 | 158 | 183 | N/A | 13 |

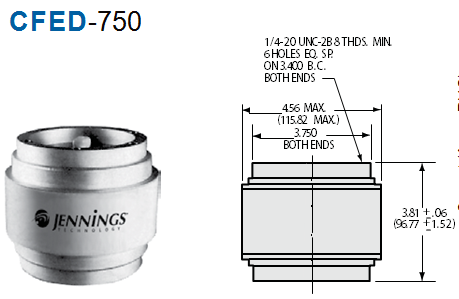

CFED-750-10S | 750 | 750 | 10 | 6 | 145 | 3.82 | 4.76 | 97 | 121 | N/A | 5.06 |
CFED-750-15S | 750 | 750 | 15 | 9 | 150 | 3.82 | 4.76 | 97 | 121 | N/A | 5.06 |
CFED-750-20S | 750 | 750 | 20 | 9 | 150 | 3.82 | 4.76 | 97 | 121 | N/A | 5.06 |
CFED-750-25S | 750 | 750 | 25 | 15 | 225 | 3.82 | 4.76 | 97 | 121 | N/A | 5.06 |

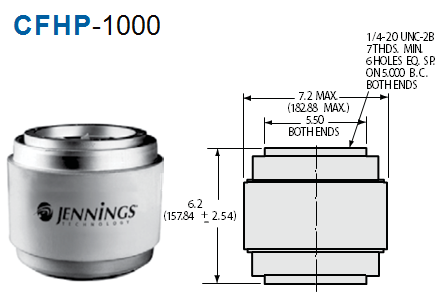

CFHP-1000-40S | 1000 | 1000 | 40 | 24 | 330 | 6.22 | 7.2 | 158 | 183 | N/A | 19.8 |
CFHP-1000-45S | 1000 | 1000 | 45 | 27 | 340 | 6.22 | 7.2 | 158 | 183 | N/A | 19.8 |
CFHP-1000-50S | 1000 | 1000 | 50 | 30 | 350 | 6.22 | 7.2 | 158 | 183 | N/A | 19.8 |
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |

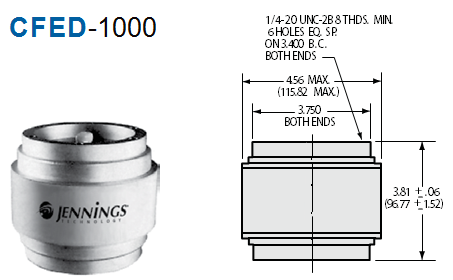

CFED-1000-10S | 1000 | 1000 | 10 | 6 | 150 | 3.82 | 4.76 | 97 | 121 | N/A | 7.04 |
CFED-1000-15S | 1000 | 1000 | 15 | 9 | 155 | 3.82 | 4.76 | 97 | 121 | N/A | 7.04 |
CFED-1000-20S | 1000 | 1000 | 20 | 12 | 160 | 3.82 | 4.76 | 97 | 121 | N/A | 7.04 |
CFED-1000-25S | 1000 | 1000 | 25 | 15 | 180 | 3.82 | 4.76 | 97 | 121 | N/A | 7.04 |
CFED-1000-30S | 1000 | 1000 | 30 | 18 | 180 | 3.82 | 4.76 | 97 | 121 | N/A | 7.04 |

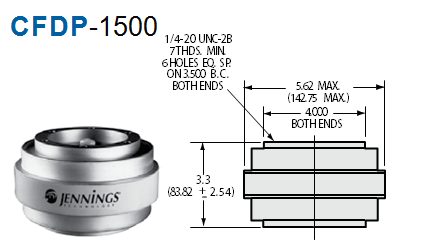

CFDP-1500-7.5S | 1500 | 1500 | 7.5 | 4.5 | 150 | 3.31 | 5.61 | 84 | 142.5 | N/A | 8.8 |
CFDP-1500-10S | 1500 | 1500 | 10 | 6 | 170 | 3.31 | 5.61 | 84 | 142.5 | N/A | 8.8 |
CFDP-1500-15S | 1500 | 1500 | 15 | 9 | 190 | 3.31 | 5.61 | 84 | 142.5 | N/A | 8.8 |
CFFP-1500-25S | 1500 | 1500 | 25 | 15 | 310 | 5.83 | 8.19 | 148 | 208 | N/A | 22 |
CFFP-1500-30S | 1500 | 1500 | 30 | 18 | 330 | 5.83 | 8.19 | 148 | 208 | N/A | 22 |
CFFP-1500-35S | 1500 | 1500 | 35 | 21 | 350 | 5.83 | 8.19 | 148 | 208 | N/A | 22 |
型号 | Capacitance | Voltage peak | Current | Nominal dimensions | Torque | Weight | |||||
Max. | Min. | Test | Working | Amps | Length (in) | Dia. (in | Length (mm) | Dia. (mm) | in.-lbs | lb | |

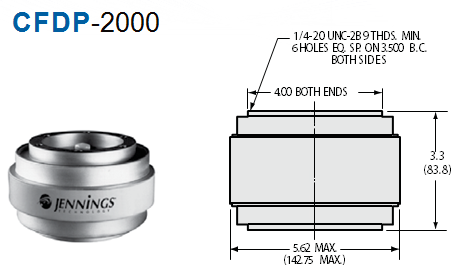

CFDP-2000-7.5S | 2000 | 2000 | 7.5 | 4.5 | 160 | 3.31 | 5.61 | 84 | 142.5 | N/A | 9.9 |
CFDP-2000-10S | 2000 | 2000 | 10 | 6 | 180 | 3.31 | 5.61 | 84 | 142.5 | N/A | 9.9 |
CFDP-2000-15S | 2000 | 2000 | 15 | 9 | 200 | 3.31 | 5.61 | 84 | 142.5 | N/A | 9.9 |
CFFP-2000-25S | 2000 | 2000 | 25 | 15 | 350 | 5.83 | 8.19 | 148 | 208 | N/A | 23.32 |
CFFP-2000-30S | 2000 | 2000 | 30 | 18 | 390 | 5.83 | 8.19 | 148 | 208 | N/A | 23.32 |
CFFP-2000-35S | 2000 | 2000 | 35 | 21 | 390 | 5.83 | 8.19 | 148 | 208 | N/A | 23.32 |
