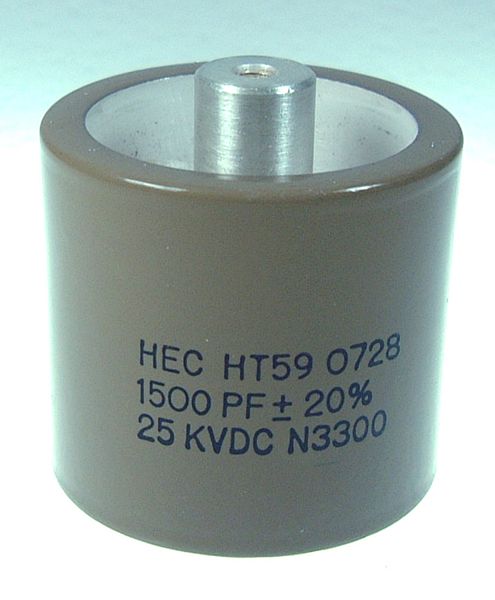

型号HT594301MA, HT59系列陶瓷电容器

• 25 kV 直流工作电压
• 50 kVA最大功率
• 50~1500 pF容量范围
• 直径2.25x 3最大长度（英寸）
• 四种TC's等级选择
• 一年保固



型号对照


Part Number	CAP	Dielectric (TC)	VMAX(DC)	fL	SMAX	fH	IMAX(RMS)
HT594500MA	50 pF	NP0	25 kV	0.509 MHz	50 kV·A	18.0 MHz	16.8 A
HT594750MA	75 pF	NP0	25 kV	0.339 MHz	50 kV·A	13.6 MHz	17.9 A
HT594101MA	100 pF	NP0	25 kV	0.254 MHz	50 kV·A	13.0 MHz	20.2 A
HT594131MA	130 pF	NP0	25 kV	0.196 MHz	50 kV·A	14.2 MHz	24.1 A
HT594151MA	150 pF	N750	25 kV	0.170 MHz	50 kV·A	13.9 MHz	25.6 A
HT594201MA	200 pF	N750	25 kV	0.127 MHz	50 kV·A	14.3 MHz	30.0 A
HT594251MA	250 pF	N750	25 kV	0.102 MHz	50 kV·A	16.0 MHz	35.5 A
HT594301MA	300 pF	N3300	25 kV	0.0848 MHz	50 kV·A	5.18 MHz	22.1 A
HT594501MA	500 pF	N3300	25 kV	0.0509 MHz	50 kV·A	3.36 MHz	23.0 A
HT594701MA	700 pF	N3300	25 kV	0.0363 MHz	50 kV·A	2.73 MHz	24.5 A
HT594801MA	800 pF	N5250	25 kV	0.0318 MHz	50 kV·A	2.10 MHz	23.0 A
HT594102MA	1000 pF	N5250	25 kV	0.0254 MHz	50 kV·A	1.99 MHz	25.0 A
HT594152MA	1500 pF	N5250	25 kV	0.0170 MHz	50 kV·A	1.67 MHz	28.1 A
HT59 CUSTOM	50 to 1500 pF	N/A	15 kV20 kV25 kV	N/A	N/A	N/A	N/A
