进口FATHOM气体质量流量计 GR112-2-A-PO-MF
型号:GR112-2-A-PO-MF

类别：质量流量计

品牌：FATHOM

文件名：

产品详情

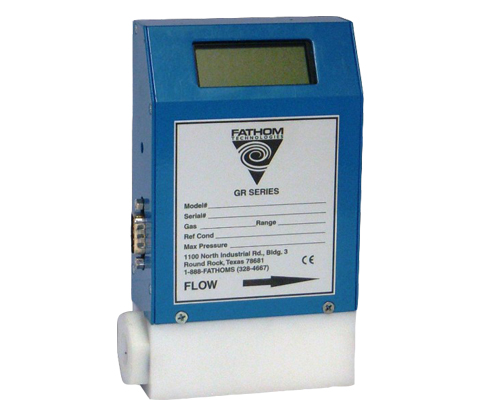

FATHOM GR系列气体质量流量计 GR112-2-A-PO-MF

GR系列气体质量流量计及控制器利用热式传感技术直接测量和控制质量流量.FATHOM公司GR系列气体质量流量计及控制器可以根据不同的气体和量程进行校准，其校准符合NIST标准。面板上带有传感器，可以调节质量流量，以及控制信号。美国费思姆(FATHOM)公司生产的流量计及控制器结构紧凑使用方便，其适合OEM生产定制，院校实验室应用和以及工程的控制。

技术参数接液材料：标准聚甲醛树脂和316不锈钢密封圈：氟橡胶输出信号：线性0～5VDC 或者线性4～20mA 输入电压：标准24 VDC（可选15 VDC，115 VAC，220 VAC @ 500ma）精度：+/- 1% FS (包括线性) 精密度： +/- 0.15% FS 或许更好连接方式：9孔针D 控制信号：旋钮或者0～5VDC 输入控制阀门：电磁控制，常闭 N/C 量程：0-10 SCCM to 100 SLPM 最大耐压：塑料主体，250PSIG。不锈钢主体:500PSIG 响应时间：1秒温度系数：0.05% 满量程每1º C 或更多压力系数：0.01% 满量程每PSIGw 或更多
特点 1、热式传感器 2、1%精度 100:1 量程比 3、一体化的阀、显示器及设定点 4、线性化输出(0-5 VDC, 4-20 mA) 5、单独的电源终端适配器 6、316 不锈钢流体 7、符合NIST校准 8、低廉的价位	尺寸
应用 1、OEM 2、实验室 3、医学 4、过程控制 5、制药 6、泄漏检测 7、R & D 8、气体混合	尺寸

类型	连接尺寸	输出代码	电压	流通材质
计量表 111 = no display 112 = w/ display 控制器 115 = no display 116 = w/ display	1 = 1/4"fnpt 2 = 1/2"fnpt 3 = 1/4"compression 4 = 3/8"compression	A = 0-5 VDC B = 4-20 ma	PW = 12 VDC(Meters Only) PS = 15 VDC PO = 24 VDC PV = 115 VAC PE = 220 VAC	No code = Standard Delrin SS = 316 Stainless Steel MF = Mid-range (316 SS) HF = High-range (316 SS)

型号列表

GR116-4-B-PO	GR112-3-B-PO	GR111-3B-PO
GR116-2-B-PO	GR112-1-B-PO	GR111-4-B-PO
GR116-2-A-PO	GR112-1-A-PO	GR111-5-B-PO
GR116-4-A-PO	GR112-3-A-PO	GR112-4-A-PO-MF
GR116-4-B-PO	GR112-3-B-PO	GR112-04SS
GR116-4-B-PO-MF	GR112-4-B-PO	GR115-01SS
GR116-4-A-PO-MF	GR112-2-B-PO	GR115-04SS
GR116-2-A-PO-MF	GR112-2-A-PO	GR112-2-B-PO-MF
GR116-2-B-PO-MF	GR112-4-A-PO	GR112-4-A-PO-HF
GR116-4-B-PO-HF	GR112-4-B-PO	GR116-01SS
GR116-4-A-PO-HF	GR112-4-B-PO-MF	GR116-04SS
GR116-2-B-PO-HF	GR112-4-A-PO-MF	GR116-01SS
GR116-2-A-PO-HF	GR112-2-A-PO-MF	GR112-4-B-PO-HF-SS
GR116-2-B-PO-HF	GR112-2-B-PO-MF	GR112-4-B-PO-MF
GR116-2-A-PO-HF	GR112-4-B-PO-HF	GR112-4-B-PO-MF-SS
GR116-2-B-PO-HF	GR112-4-A-PO-HF	GR115-1-A-PO-SS
GR116-2-A-PO-HF	GR112-2-B-PO-HF	GR115-4-B-PO
GR116-4-B-PO-MF-SS	GR112-2-A-PO-HF	GR115-2-B-PO
GR116-2-B-PO-MF-SS	GR112-2-B-PO-HF	GR115-2-A-PO
GR116-4-A-PO-MF-SS	GR112-2-A-PO-HF	GR115-4-A-PO
GR116-2-A-PO-MF-SS	GR112-2-B-PO-HF	GR115-4-B-PO
GR116-3-B-PO	GR112-2-A-PO-HF	GR115-4-B-PO-MF
GR116-1-B-PO	GR112-4-B-PO-MF-SS	GR115-4-A-PO-MF
GR116-1-A-PO	GR112-2-B-PO-MF-SS	GR115-2-A-PO-MF
GR116-3-A-PO	GR112-4-A-PO-MF-SS	GR115-2-B-PO-MF
GR116-3-B-PO	GR112-2-A-PO-MF-SS	GR115-4-B-PO-HF
GR116-3-B-PO-MF	GR112-1-A-PV-MF	GR115-4-A-PO-HF
GR116-3-A-PO-MF	GR112-2-A-PV-MF	GR115-2-B-PO-HF
GR116-1-A-PO-MF	GR112-3-A-PV-MF	GR115-2-A-PO-HF
GR116-1-B-PO-MF	GR112-4-A-PV-MF	GR115-2-B-PO-HF
GR116-3-B-PO-HF	GR112-1-B-PV-MF	GR115-2-A-PO-HF
GR116-3-A-PO-HF	GR112-2-B-PV-MF	GR115-2-B-PO-HF
GR116-1-B-PO-HF	GR112-3-B-PV-MF	GR115-2-A-PO-HF
GR116-1-A-PO-HF	GR112-4-B-PV-MF	GR115-4-B-PO-MF-SS
GR116-1-B-PO-HF	GR112-1-B-PE-MF	GR115-2-B-PO-MF-SS
GR116-1-A-PO-HF	GR112-2-B-PE-MF	GR115-4-A-PO-MF-SS
GR116-1-B-PO-HF	GR112-3-B-PE-MF	GR115-2-A-PO-MF-SS
GR116-1-A-PO-HF	GR112-4-B-PE-MF	GR115-3-B-PO
GR116-3-B-PO-MF-SS	GR112-1-A-PE-MF	GR115-1-B-PO
GR116-1-B-PO-MF-SS	GR112-2-A-PE-MF	GR115-1-A-PO
GR116-3-A-PO-MF-SS	GR112-3-A-PE-MF	GR115-3-A-PO
GR116-1-A-PO-MF-SS	GR112-4-A-PE-MF	GR115-3-B-PO
GR116-1-A-PV-MF	GR112-1-A-PV-HF	GR115-3-B-PO-MF
GR116-2-A-PV-MF	GR112-2-A-PV-HF	GR115-3-A-PO-MF
GR116-3-A-PV-MF	GR112-3-A-PV-HF	GR115-1-A-PO-MF
GR116-4-A-PV-MF	GR112-4-A-PV-HF	GR115-1-B-PO-MF
GR116-1-B-PV-MF	GR112-1-B-PV-HF	GR115-3-B-PO-HF
GR116-2-B-PV-MF	GR112-2-B-PV-HF	GR115-3-A-PO-HF
GR116-3-B-PV-MF	GR112-3-B-PV-HF	GR115-1-B-PO-HF
GR116-4-B-PV-MF	GR112-4-B-PV-HF	GR115-1-A-PO-HF
GR116-1-B-PE-MF	GR112-1-B-PE-HF	GR115-1-B-PO-HF
GR116-2-B-PE-MF	GR112-2-B-PE-HF	GR115-1-A-PO-HF
GR116-3-B-PE-MF	GR112-3-B-PE-HF	GR115-1-B-PO-HF
GR116-4-B-PE-MF	GR112-4-B-PE-HF	GR115-1-A-PO-HF
GR116-1-A-PE-MF	GR112-1-A-PE-HF	GR115-3-B-PO-MF-SS
GR116-2-A-PE-MF	GR112-2-A-PE-HF	GR115-1-B-PO-MF-SS
GR116-3-A-PE-MF	GR112-3-A-PE-HF	GR115-3-A-PO-MF-SS
GR116-4-A-PE-MF	GR112-4-A-PE-HF	GR115-1-A-PO-MF-SS
GR116-1-A-PV-HF	GR112-3-B-PO-MF	GR115-1-A-PV-MF
GR116-2-A-PV-HF	GR112-3-A-PO-MF	GR115-2-A-PV-MF
GR116-3-A-PV-HF	GR112-1-A-PO-MF	GR115-3-A-PV-MF
GR116-4-A-PV-HF	GR112-1-B-PO-MF	GR115-4-A-PV-MF
GR116-1-B-PV-HF	GR112-3-B-PO-HF	GR115-1-B-PV-MF
GR116-2-B-PV-HF	GR112-3-A-PO-HF	GR115-2-B-PV-MF
GR116-3-B-PV-HF	GR112-1-B-PO-HF	GR115-3-B-PV-MF
GR116-4-B-PV-HF	GR112-1-A-PO-HF	GR115-4-B-PV-MF
GR116-1-B-PE-HF	GR112-1-B-PO-HF	GR115-1-B-PE-MF
GR116-2-B-PE-HF	GR112-1-A-PO-HF	GR115-2-B-PE-MF
GR116-3-B-PE-HF	GR112-1-B-PO-HF	GR115-3-B-PE-MF
GR116-4-B-PE-HF	GR112-1-A-PO-HF	GR115-4-B-PE-MF
GR116-1-A-PE-HF	GR112-3-B-PO-MF-SS	GR115-1-A-PE-MF
GR116-2-A-PE-HF	GR112-1-B-PO-MF-SS	GR115-2-A-PE-MF
GR116-3-A-PE-HF	GR112-3-A-PO-MF-SS	GR115-3-A-PE-MF
GR116-4-A-PE-HF	GR112-1-A-PO-MF-SS	GR115-4-A-PE-MF
